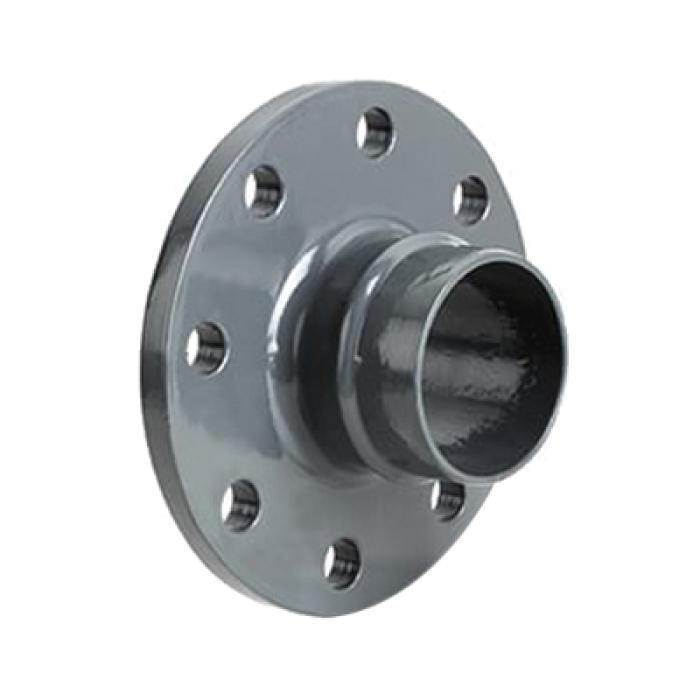

AIRPIPE USA #A170 - 200 mm (8in) ANSI Flange to 200 mm (8in) Pipe (Bolts and Gasket Included) - Includes (1) Union Connectors for assembly

Pipe Flanges
652613 MFG #: A170
Requires Quote

AIRPIPE USA #A170 - 200 mm (8in) ANSI Flange to 200 mm (8in) Pipe (Bolts and Gasket Included) - Includes (1) Union Connectors for assembly
  • Bolt Hole Diameter: 22
  • Connection Size 1: 200
  • Connection Size 2: 200
  • Connection Type: Flanged|Threaded
  • Connection Type 1: Flanged
  • Connection Type 2: Pipe
  • Dimensions: 340 mm Dia x 109 mm L
  • Fitting Type: Flange
  • Manufacturer: AIRpipe
  • Material: Aluminum
  • Material Construction: Aluminum
  • Number of Bolt Holes: 8
  • Temperature Rating: -4 to 176

AIRPIPE USA #A170 - 200 mm (8in) ANSI Flange to 200 mm (8in) Pipe (Bolts and Gasket Included) - Includes (1) Union Connectors for assembly

QTY
Add to Wishlist
  • Features
  • STANDARD_APPROVALS: ISO 8573-1
  • INCLUDES: (1) Flange Gasket, (8) 7 cm Flange Bolts
