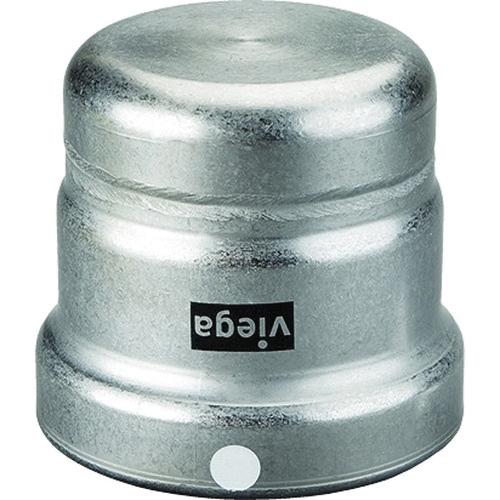

2-1/2 VIEGA #26760 CAP CS MGPR (FKM)

Tubing Press Fittings
654213 MFG #: 26760
Requires Quote

2-1/2 VIEGA #26760 CAP CS MGPR (FKM)
  • Connection Size 1: 2-1/2
  • Connection Type: Press
  • Connection Type 1: Press
  • Dimensions: 3.27 in L
  • Finish: Zinc Nickel-Coated
  • Fitting Type: Cap
  • Manufacturer: Viega
  • Material: Steel
  • Material Construction: Steel
  • Series: 4856.1XL Series
  • Temperature Rating: 14 to 284

2-1/2 VIEGA #26760 CAP CS MGPR (FKM)

QTY
Add to Wishlist
  • Features
  • Corrosion-resistant zinc nickel coating
  • The same hanger and support requirements as threaded systems
  • Smart Connect® technology provides installers added confidence in their ability to ensure secure connections
  • STANDARD_APPROVALS: ANSI Specified|ASME B31.1/B31.3/B31.9|ASTM F3226|CAN Certified|CRN 23019.5 A/B/C|FM Class 1920|IAPMO PS-117|ICC-ES LC1002|NFPA 13/13D/13R|UL 213
  • INCLUDES: FKM Sealing Element
