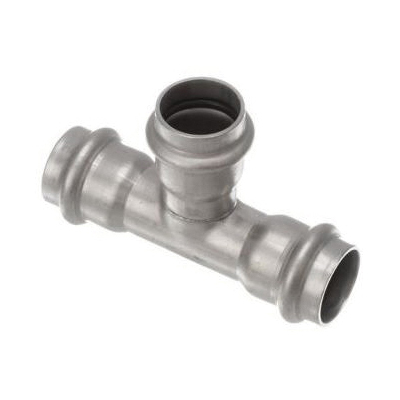

Viega 4018 Series 80690 Tube Tee, 1-1/2 in Press x 1-1/2 in Press x 1/2 in Press, Stainless Steel
Tubing Press Fittings
302906
MFG #: 80690
Requires Quote
- Connection Size 1: 1-1/2
- Connection Size 2: 1-1/2
- Connection Size 3: 1/2
- Connection Type: Press|Press|Press
- Connection Type 1: Press
- Connection Type 2: Press
- Connection Type 3: Press
- Fitting Type: Tee
- For Use With: Viega ProPress® Stainless Tubings
- Manufacturer: Viega
- Material: Stainless Steel
- Material Construction: Stainless Steel
- Series: 4018 Series
- Temperature Rating: 0 to 250
Viega Tube Tee, 4018 Series, Tee Fitting, 1-1/2 in Connection Size 1, Connection Type 1: Press, 1-1/2 in Connection Size 2, Connection Type 2: Press, Connection Size 3: 1/2 in, Connection Type 3: Press, Press|Press|Press Connection, Stainless Steel, Material Construction: Stainless Steel, For Use With: Viega ProPress® Stainless Tubings, 0 to 250 deg F
- Features
- More than 200 different engineered fitting configurations for type 316 stainless steel
- Approved for more than 450 different applications
- STANDARD_APPROVALS: ABS Approved|ASME B31/A312/A403/A554|Bureau Veritas Certified|DNV-GL Certified|IAPMO PS 117|ICC ES LC1002|IMC Certified|Lloyd's Register Certified|UMC Listed
- APPLICATION: For hydronic heating (with glycol), chilled water, low pressure steam (15 psi maximum), isopropyl alcohol, latex paint, phosphoric acid, compressed air, non-medical gases and vacuum (29.2 inHg maximum at 68 deg F) applications
- INCLUDES: EPDM Sealing Element
