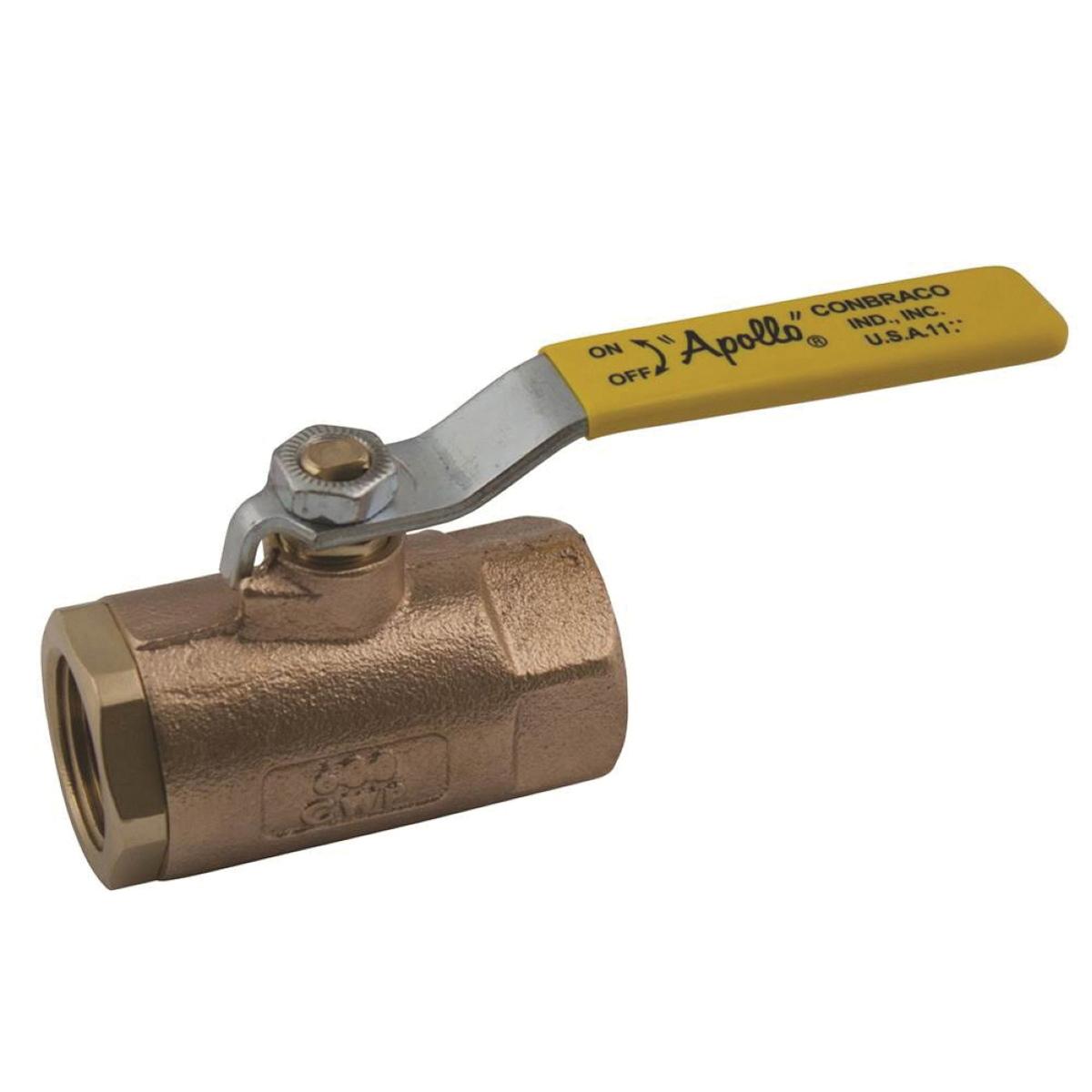

1-1/2 APOLLO 70-107-27-41 BRZ THRD BALL VLV W/AUTOMATIC DRAIN AND SS LATCH LOCK LEVER *NOT approved for potable water

Brass, Bronze, & Copper Ball Valves
339796 MFG #: 70-107-2741
Requires Quote

1-1/2 APOLLO 70-107-27-41 BRZ THRD BALL VLV W/AUTOMATIC DRAIN AND SS LATCH LOCK LEVER *NOT approved for potable water
  • Ball Material: Brass
  • Body Material: Bronze
  • Connection Type: FNPT
  • Flow Coefficient (Cv): 84
  • Handle Material: Steel
  • Inlet to Outlet Length: 4.37
  • Lead-Free/Contains Lead: Contains Lead
  • Manufacturer: Apollo®
  • Material Standard: ASTM B584 Grade C84400, ASTM B16
  • Media: Gas, Water
  • Nominal Size: 1-1/2
  • Operator Type: Latch-Lock Lever
  • Orifice Size: 1-1/4
  • Packing Material: MPTFE
  • Port Type: Standard
  • Seal Material: PTFE
  • Seat Material: RPTFE
  • Series: 70-100 Series
  • Stem Material: Brass
  • Top to Inlet Center: 3.06

1-1/2 APOLLO 70-107-27-41 BRZ THRD BALL VLV W/AUTOMATIC DRAIN AND SS LATCH LOCK LEVER *NOT approved for potable water

QTY
Add to Wishlist
  • Features
  • Premium materials and heavy-duty construction
  • Adjustable stem packing gland
  • Blowout-proof stem design
  • 100% factory tested
  • Chromium-plated ball
  • Automatic drain and stainless steel nut
  • STANDARD_APPROVALS: ARRA Compliant|MSS SP-110|CRN OC10908.5C|CSA B51|UPC Listed
  • APPLICATION: For commercial applications
