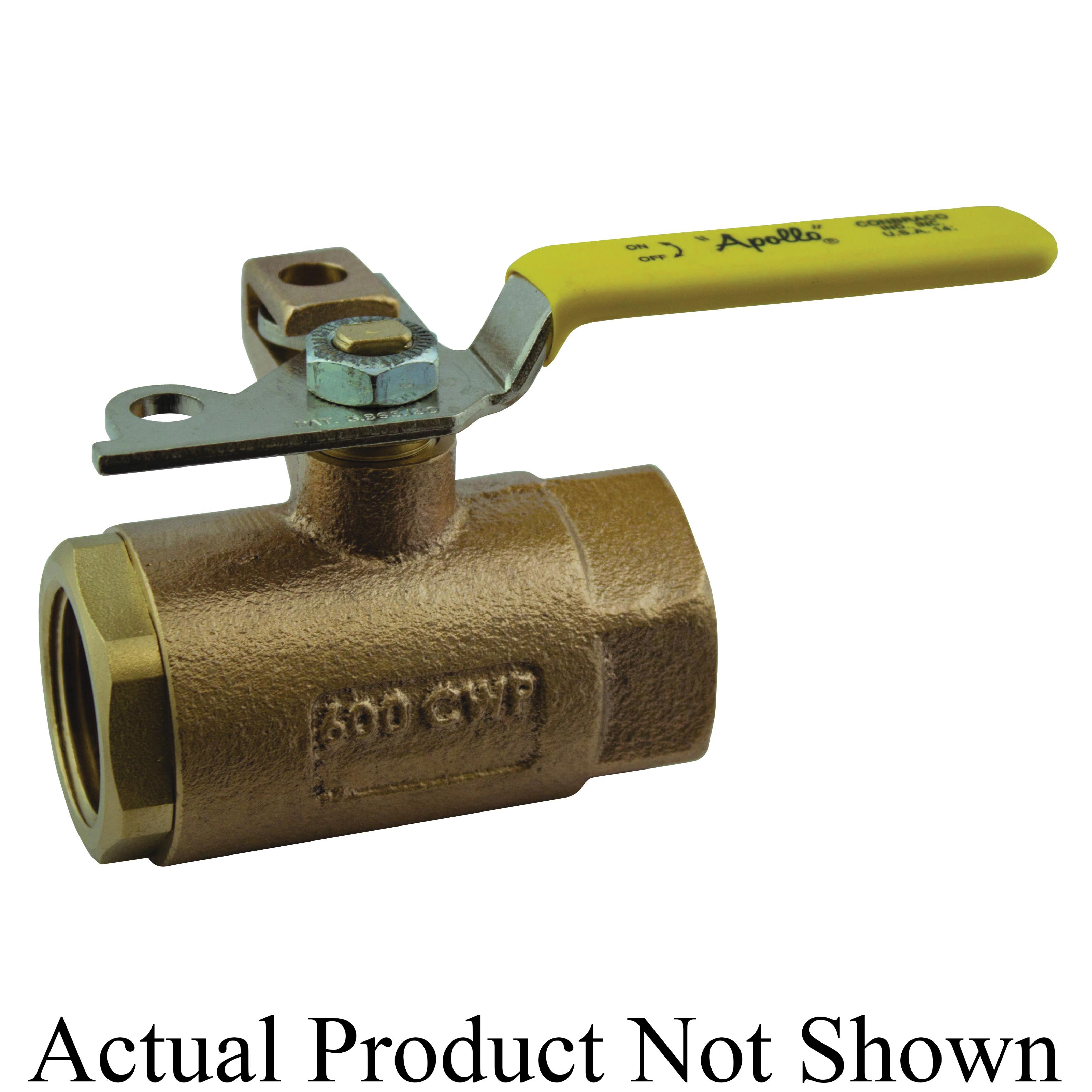

1-1/2 APOLLO 75-107-41 BRZ PAD LOCKING THRD 2PC STD PORT BALL VLV w/ AUTOMATIC DRAIN *NOT approved for potable water.

Brass, Bronze, & Copper Ball Valves
306938 MFG #: 75-107-41
Requires Quote

1-1/2 APOLLO 75-107-41 BRZ PAD LOCKING THRD 2PC STD PORT BALL VLV w/ AUTOMATIC DRAIN *NOT approved for potable water.
  • Ball Material: Brass
  • Body Material: Bronze
  • Connection Type: FNPT
  • Flow Coefficient (Cv): 84
  • Handle Material: Steel
  • Inlet to Outlet Length: 4.37
  • Lead-Free/Contains Lead: Contains Lead
  • Manufacturer: Apollo®
  • Material Standard: ASTM B584 Grade C84400, ASTM B283 C37700, ASTM B16
  • Media: Gas, Water
  • Nominal Size: 1-1/2
  • Operator Type: Lever
  • Orifice Size: 1-1/4
  • Packing Material: MPTFE
  • Port Type: Standard
  • Seal Material: PTFE
  • Seat Material: RPTFE
  • Series: 75-100 Series
  • Stem Material: Brass
  • Top to Inlet Center: 2.87

1-1/2 APOLLO 75-107-41 BRZ PAD LOCKING THRD 2PC STD PORT BALL VLV w/ AUTOMATIC DRAIN *NOT approved for potable water.

QTY
Add to Wishlist
  • Features
  • Adjustable packing gland
  • Blowout-proof stem design
  • RPTFE seats and stuffing box ring
  • Hardened ball for wear resistance
  • Pad locking
  • Automatic drain
  • STANDARD_APPROVALS: MSS SP-110|CRN OC10908.5C|WW-V-35C Type II Federal Specifications|API 608|MSSP-25/72
  • APPLICATION: For commercial and industrial applications
