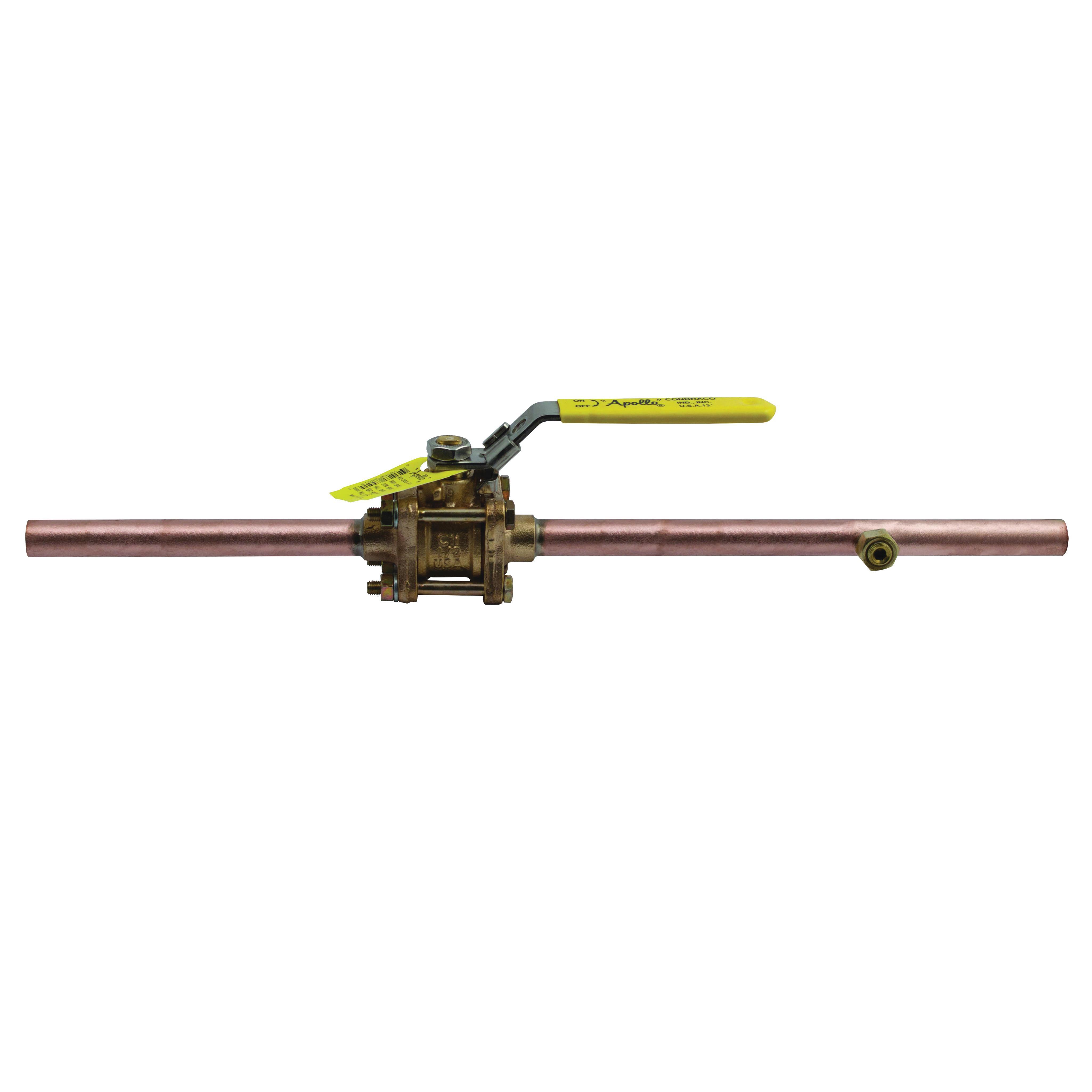

1/2 APOLLO 82-203-K1 3PC SWT MED GAS OXY CLEAN BALL VALVE W/ MALE EXT

Brass, Bronze, & Copper Ball Valves
450454 MFG #: 82-203-K1
Requires Quote

1/2 APOLLO 82-203-K1 3PC SWT MED GAS OXY CLEAN BALL VALVE W/ MALE EXT
  • Ball Material: Brass
  • Body Material: Bronze
  • Connection Type: C
  • Handle Material: Steel
  • Inlet to Outlet Length: 13.81
  • Manufacturer: Apollo®
  • Material Standard: ASTM B584 Grade C84400
  • Media: Medical Gas
  • Nominal Size: 1/2
  • Opening Size: 5/8
  • Operator Type: Non-Locking Handle
  • Packing Material: RPTFE
  • Port Type: Full
  • Seat Material: RPTFE
  • Series: 82-200 Series
  • Stem Material: Brass
  • Temperature Rating: 500
  • Top to Inlet Center: 2

1/2 APOLLO 82-203-K1 3PC SWT MED GAS OXY CLEAN BALL VALVE W/ MALE EXT

QTY
Add to Wishlist
  • Features
  • Cast bronze valve body and valve end caps
  • RPTFE seats and stuffing box ring
  • Vacuum service to 29 inHg
  • Full-port in all sizes
  • Blowout-proof stem
  • Adjustable packing nut
  • In line repairable
  • Cleaned for oxygen service per CGA G4.1 and NFPA 99
  • Factory brazed, male extensions for solder or brazed installation without disassembly
  • Type K copper tubing brazed into both end caps
  • STANDARD_APPROVALS: MSS SP-110
  • APPLICATION: For commercial applications
