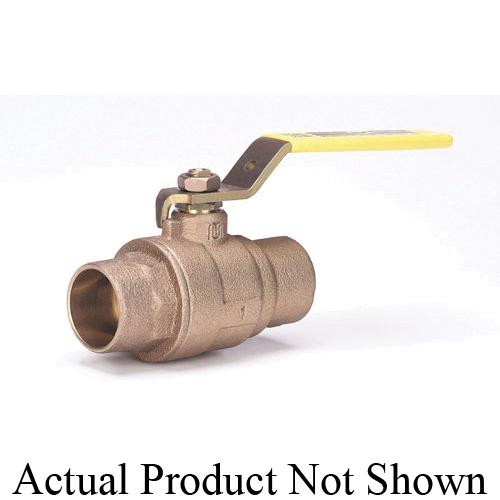

1/2 MILW #BA-150SA12 - BALL VALVE - 2PC - BRONZE BODY - SS BALL & STEM - 600 WOG - 150 SWP - SOLDER - FULL PORT

Brass, Bronze, & Copper Ball Valves
649491 MFG #: BA-150SA12
Requires Quote

1/2 MILW #BA-150SA12 - BALL VALVE - 2PC - BRONZE BODY - SS BALL & STEM - 600 WOG - 150 SWP - SOLDER - FULL PORT
  • Ball Material: 316 Stainless Steel
  • Body Material: Bronze
  • Connection Type: Solder
  • Flow Coefficient (Cv): 13
  • Handle Material: Steel
  • Inlet to Outlet Length: 2.39
  • Manufacturer: Milwaukee Valve
  • Material Standard: ASTM B584, ASTM A276
  • Media: Gas, Oil, Water
  • Nominal Size: 1/2
  • Opening Size: 1/2
  • Operator Type: Lever
  • Packing Material: PTFE
  • Port Type: Full
  • Seat Material: RPTFE
  • Series: BA-150S Series
  • Softgoods Material: RPTFE
  • Stem Material: 316 Stainless Steel
  • Top to Inlet Center: 1.89

1/2 MILW #BA-150SA12 - BALL VALVE - 2PC - BRONZE BODY - SS BALL & STEM - 600 WOG - 150 SWP - SOLDER - FULL PORT

QTY
Add to Wishlist
  • Features
  • Videos
  • Not intended for use in potable water
  • Blowout-proof stem design
  • STANDARD_APPROVALS: MSS SP-110
