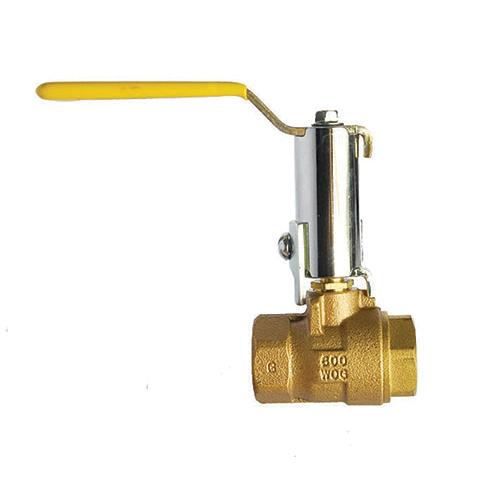

1/2 MILW #BA100XMA12 - BALL VALVE - 2PC - BRONZE BODY - 600 WOG - 150 SWP - THREADED - FULL PORT - WITH EXTENSION HANDLE W/MEMORY STOP

Brass, Bronze, & Copper Ball Valves
649615 MFG #: BA100XMA12
Requires Quote

1/2 MILW #BA100XMA12 - BALL VALVE - 2PC - BRONZE BODY - 600 WOG - 150 SWP - THREADED - FULL PORT - WITH EXTENSION HANDLE W/MEMORY STOP
  • Additional Information: 150 psi SWP Pressure
  • Ball Material: Brass
  • Body Material: Bronze
  • Connection Type: NPT
  • Flow Coefficient (Cv): 13
  • Handle Material: Steel
  • Inlet to Outlet Length: 2.19
  • Manufacturer: Milwaukee Valve
  • Material Standard: ASTM B584, ASTM B16, ASTM B283
  • Media: Gas, Oil, Water
  • Nominal Size: 1/2
  • Opening Size: 1/2
  • Operator Type: Extension Handle with Memory Stop
  • Packing Material: PTFE
  • Port Type: Full
  • Seat Material: RPTFE
  • Series: BA-100-XM Series
  • Softgoods Material: RPTFE
  • Stem Material: Brass
  • Top to Inlet Center: 1.91

1/2 MILW #BA100XMA12 - BALL VALVE - 2PC - BRONZE BODY - 600 WOG - 150 SWP - THREADED - FULL PORT - WITH EXTENSION HANDLE W/MEMORY STOP

QTY
Add to Wishlist
  • Features
  • Videos
  • Not intended for use in potable water
  • Blowout-proof stem design
  • STANDARD_APPROVALS: MSS SP-110
