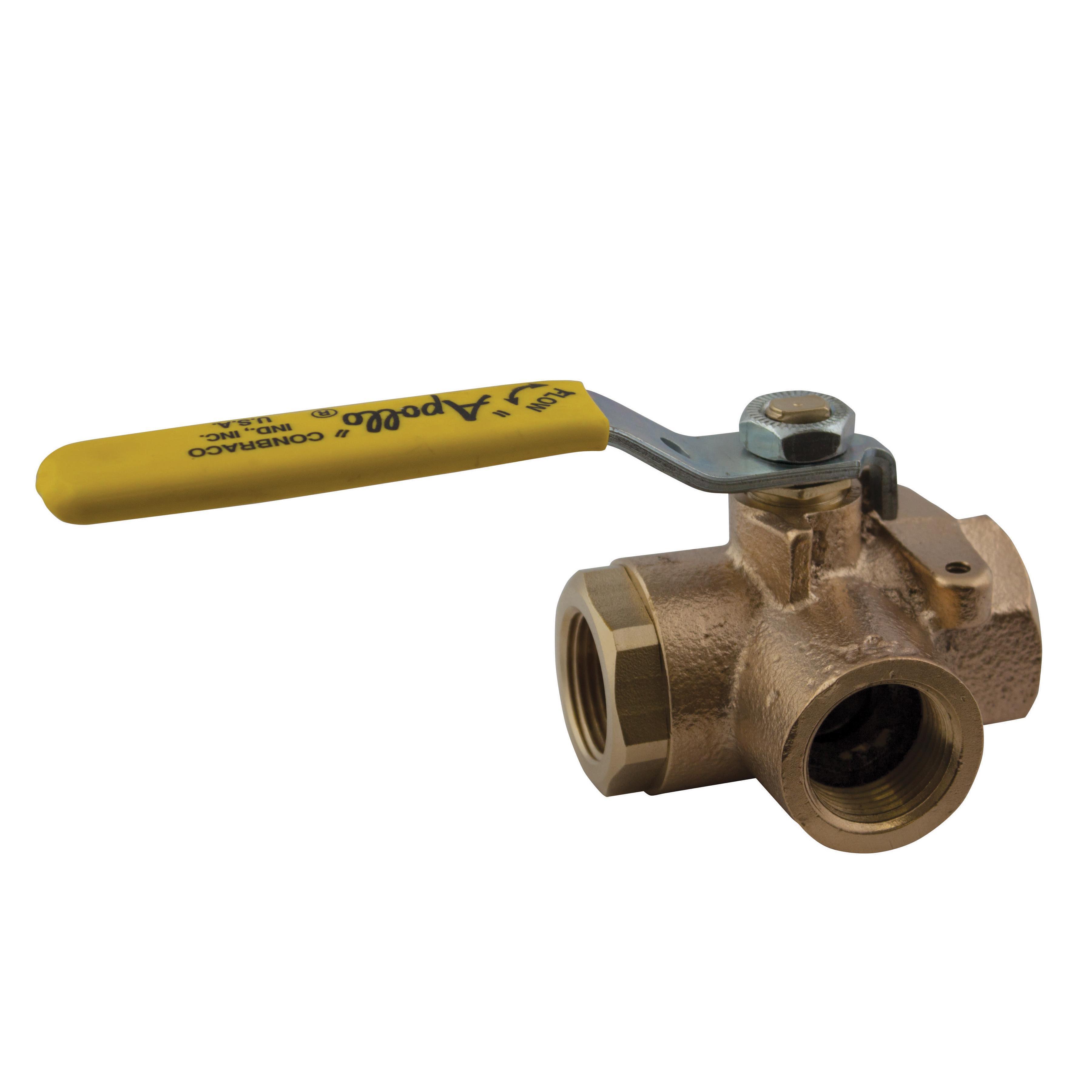

1/4 APOLLO 70-601-10-57 BRZ 3-WAY THRD BALL VALVE W/ SS LEVER & NUT - OXYGEN CLEANED

Brass, Bronze, & Copper Ball Valves
595347 MFG #: 706011057
Requires Quote

1/4 APOLLO 70-601-10-57 BRZ 3-WAY THRD BALL VALVE W/ SS LEVER & NUT - OXYGEN CLEANED
  • Additional Information: Stainless Steel Lever and Nut
  • Ball Material: Brass
  • Body Material: Bronze
  • Color: Yellow
  • Connection Type: FNPT
  • Finish: Bronze
  • Handle Material: Stainless Steel
  • Inlet to Outlet Length: 2-1/4
  • Manufacturer: Apollo®
  • Material Standard: ASTM B584-C84400, ASTM B16
  • Mounting Type: Pad
  • Nominal Size: 1/4
  • Number Of Ports/Ways: 3-Way
  • Opening Size: 1/4
  • Operator Type: Lever
  • Packing Material: RPTFE
  • Port Type: Standard
  • Seal Material: PTFE
  • Seat Material: RPTFE
  • Series: 70-600 Series
  • Softgoods Material: PTFE/RPTFE
  • Stem Material: Brass
  • Temperature Rating: 500
  • Top to Inlet Center: 1.8
  • Trim Material: Brass

1/4 APOLLO 70-601-10-57 BRZ 3-WAY THRD BALL VALVE W/ SS LEVER & NUT - OXYGEN CLEANED

QTY
Add to Wishlist
  • Features
  • RPTFE seats and stuffing box ring
  • Blowout-proof stem design
  • Adjustable packing gland
  • Drilled and tapped mounting pad
  • Made in the USA
  • STANDARD_APPROVALS: ASTM Specified|BAA Compliant|CRN OC10908.5C|Federal WW-V-35C Type II|MSS SP-110
  • APPLICATION: Heating, Cooling and Vacuum Applications
