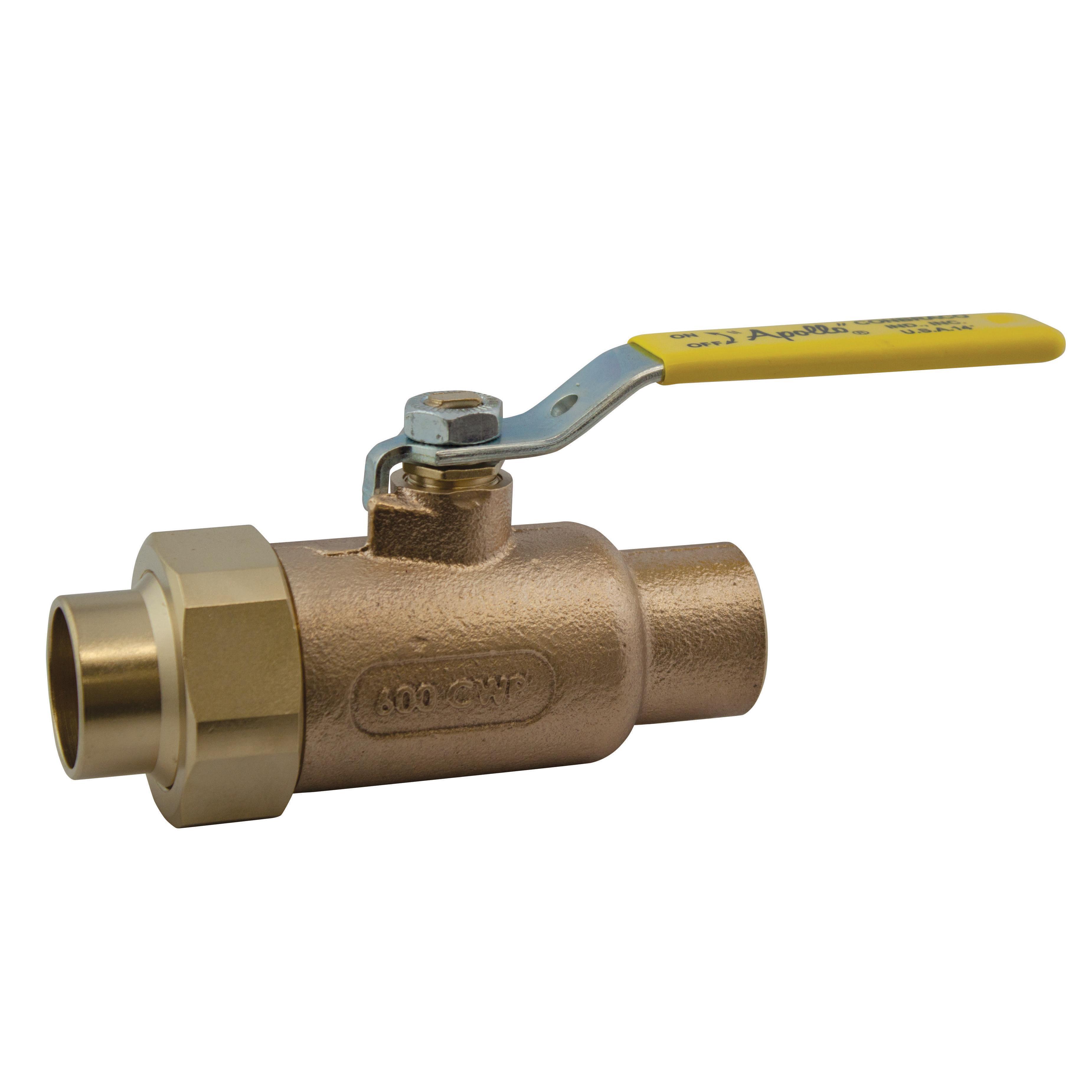

1 APOLLO 70-405-10-14-AC2 BRZ SINGLE UNION END SWT BALL VALVE (LOOSE ASSY, PKG & SEAL BULK)

Brass, Bronze, & Copper Ball Valves
583525 MFG #: 704051014AC2
Requires Quote

1 APOLLO 70-405-10-14-AC2 BRZ SINGLE UNION END SWT BALL VALVE (LOOSE ASSY, PKG & SEAL BULK)
  • Additional Information: 29 in-Hg Vacuum Service, 150 psi SWP Pressure, Uni-Directional Side Vented Ball, Stainless Steel Lever and Nut
  • Ball Material: Brass
  • Body Material: Bronze
  • Color: Yellow
  • Connection Type: Union Solder x Solder
  • Handle Material: Stainless Steel
  • Inlet to Outlet Length: 5.06
  • Manufacturer: Apollo®
  • Material Standard: ASTM B584-C84400, ASTM B16/B283 C37700, ASTM B584-C84400
  • Media: Vacuum
  • Nominal Size: 1
  • Opening Size: 0.87
  • Operator Type: Lever
  • Packing Material: RPTFE
  • Port Type: Standard
  • Seal Material: PTFE
  • Seat Material: RPTFE
  • Series: 70-400 Series
  • Softgoods Material: PTFE/RPTFE
  • Stem Material: Brass
  • Temperature Rating: 350
  • Top to Inlet Center: 2-1/4
  • Trim Material: Brass

1 APOLLO 70-405-10-14-AC2 BRZ SINGLE UNION END SWT BALL VALVE (LOOSE ASSY, PKG & SEAL BULK)

QTY
Add to Wishlist
  • Features
  • RPTFE seats and stuffing box ring
  • Blowout-proof stem design
  • Adjustable packing gland
  • Made in the USA
  • STANDARD_APPROVALS: ASTM Specified|BAA Compliant|CRN OC10908.5C|Federal WW-V-35C Type II|MSS SP-110
  • APPLICATION: Heating, Cooling and Vacuum Applications
