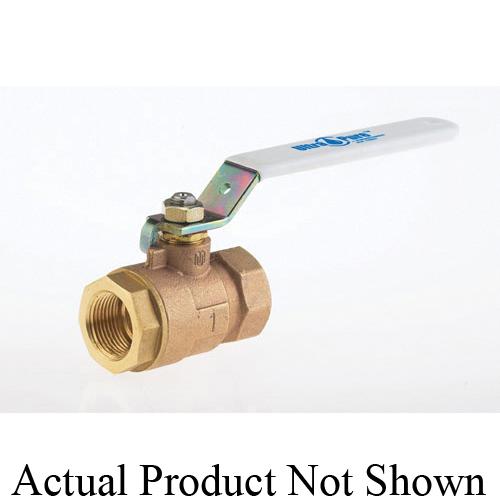

1 MILW #UPBA-400SA100 - LOW LEAD BRONZE - BALL VALVE - 2PC - FULL PORT - SS BALL/STEM - 600 WOG - THREADED - NSF 372 & 61

Brass, Bronze, & Copper Ball Valves
649806 MFG #: UPBA-400SA100
Requires Quote

1 MILW #UPBA-400SA100 - LOW LEAD BRONZE - BALL VALVE - 2PC - FULL PORT - SS BALL/STEM - 600 WOG - THREADED - NSF 372 & 61
  • Ball Material: 316 Stainless Steel
  • Body Material: Bronze
  • Connection Type: NPT
  • Flow Coefficient (Cv): 61
  • Handle Material: Steel
  • Inlet to Outlet Length: 3.32
  • Lead-Free/Contains Lead: Lead-Free
  • Manufacturer: Milwaukee Valve
  • Material Standard: ASTM B584 UNS C89833, ASTM A276 UNS S31600
  • Media: Gas, Oil, Water
  • Nominal Size: 1
  • Opening Size: 1.06
  • Operator Type: Lever
  • Packing Material: PTFE
  • Port Type: Full
  • Seat Material: RPTFE
  • Series: UPBA-400S Series
  • Softgoods Material: RPTFE
  • Stem Material: 316 Stainless Steel
  • Top to Inlet Center: 2.68

1 MILW #UPBA-400SA100 - LOW LEAD BRONZE - BALL VALVE - 2PC - FULL PORT - SS BALL/STEM - 600 WOG - THREADED - NSF 372 & 61

QTY
Add to Wishlist
  • Features
  • Videos
  • Low-lead valve for potable water
  • Blowout-proof stem design
  • STANDARD_APPROVALS: IAPMO R and T|MSS SP-110|NSF/ANSI 61/372
