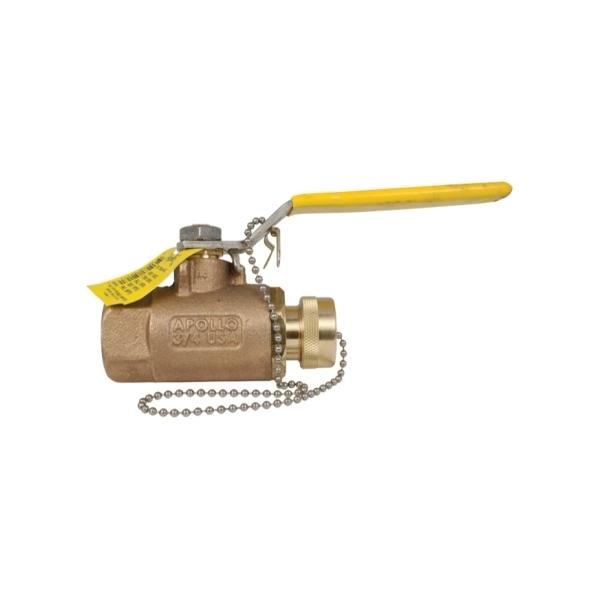

1" NPT x 3/4 HOSE APOLLO 70-105-HC BRZ BALL VALVE W/ CAP & CHAIN

Brass, Bronze, & Copper Ball Valves
240356 MFG #: 70-105-HC
Requires Quote

1" NPT x 3/4 HOSE APOLLO 70-105-HC BRZ BALL VALVE W/ CAP & CHAIN
  • Ball Material: Brass
  • Body Material: Bronze
  • Connection Type: FNPT
  • Flow Coefficient (Cv): 43
  • Handle Material: Steel
  • Inlet to Outlet Length: 3.37
  • Manufacturer: Apollo®
  • Material Standard: ASTM B16, ASTM B584 C84400
  • Media: Gas, Water
  • Nominal Size: 1
  • Operator Type: Lever Handle
  • Orifice Size: 0.87
  • Packing Material: MPTFE
  • Port Type: Standard
  • Seal Material: PTFE
  • Seat Material: RPTFE
  • Series: 70-100 Series
  • Stem Material: Brass
  • Temperature Rating: 500
  • Top to Inlet Center: 2-1/4

1" NPT x 3/4 HOSE APOLLO 70-105-HC BRZ BALL VALVE W/ CAP & CHAIN

QTY
Add to Wishlist
  • Features
  • Premium materials and heavy-duty construction
  • Adjustable stem packing gland
  • Blowout-proof stem design
  • 100% factory tested
  • Chromium-plated ball
  • 3/4 in hose cap and chain
  • STANDARD_APPROVALS: ARRA Compliant|MSS SP-110 Compliant|CRN OC10908.5C|CSA B51|UPC Listed
  • APPLICATION: Commercial Applications
