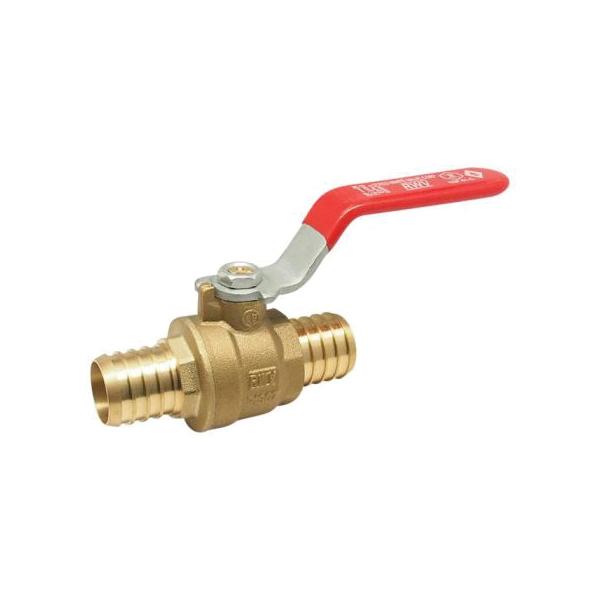

1" RWV 5009AB 400# BRASS PEX BARB X BARB BALL VALVE CRIMP

Brass, Bronze, & Copper Ball Valves
541210 MFG #: 5009AB-1
Requires Quote

1" RWV 5009AB 400# BRASS PEX BARB X BARB BALL VALVE CRIMP
  • Ball Material: Brass
  • Body Material: Brass
  • Connection Type: PEX
  • Dimensions: 3.15 in L
  • Handle Material: Steel
  • Inlet to Outlet Length: 3.15
  • Lead-Free/Contains Lead: Lead-Free
  • Manufacturer: RWV®
  • Material Standard: ASTM B927 C27453, ASTM A36
  • Media: Gas, Oil, Water
  • Nominal Size: 1
  • Operator Type: Handle
  • Orifice Size: 0.71
  • Packing Material: NBR
  • Port Type: Full
  • Seat Material: PTFE
  • Series: 5009AB Series
  • Softgoods Material: NBR/PTFE
  • Stem Material: Brass
  • Temperature Rating: 15 to 160
  • Top to Inlet Center: 1.85
  • Trim Material: Brass/PTFE

1" RWV 5009AB 400# BRASS PEX BARB X BARB BALL VALVE CRIMP

QTY
Add to Wishlist
  • Features
  • Virgin PTFE seats
  • Double NBR O-ring packing
  • Blowout-proof stem
  • STANDARD_APPROVALS: California AB1953|CSA B125.3|cTLus Listed|NSF 61-G, 372
  • APPLICATION: For PEX tubing
