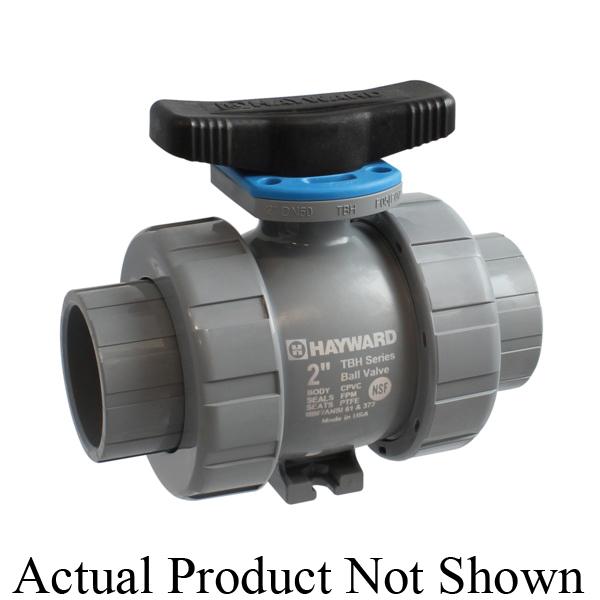

3 HAYWARD S80 CPVC TU VENTED BALL VLV W/ VITON SEALS TBH2300A0SV0Z00

CPVC Ball Valves
763505 MFG #: TBH2300A0SV0Z00
Requires Quote

3 HAYWARD S80 CPVC TU VENTED BALL VLV W/ VITON SEALS TBH2300A0SV0Z00
  • Actuator Type: Manual
  • Additional Information: Large Diameter Body Chassis
  • Body Material: CPVC
  • Connection Type: Socket
  • Flow Coefficient (Cv): 490
  • Inlet to Outlet Length: 10.56
  • Manufacturer: HAYWARD®
  • Material Standard: ASTM D1784
  • Media: Sodium Hypochlorite
  • Mounting Type: Pad
  • Nominal Size: 3
  • Operator Type: Handle
  • Orifice Size: 2-3/4
  • Port Type: Full
  • Seal Material: FKM
  • Seat Material: PTFE
  • Series: TBH Series
  • Temperature Rating: 70
  • Top to Inlet Center: 6.7

3 HAYWARD S80 CPVC TU VENTED BALL VLV W/ VITON SEALS TBH2300A0SV0Z00

QTY
Add to Wishlist
  • Features
  • Integral ISO 5211 mounting pad for easy actuation
  • Standard lockout plate, lockout/tagout for up to four-locks
  • Permanent laser markings, eliminates labels
  • System friendly "molded in" footpad for skid or panel mount
  • UV-resistant sure grip ergonomic handle
  • Double O-ring stem seals
  • Easy replacement for existing HAYWARD® TB-Z Series
  • STANDARD_APPROVALS: NSF/ANSI 61/372
