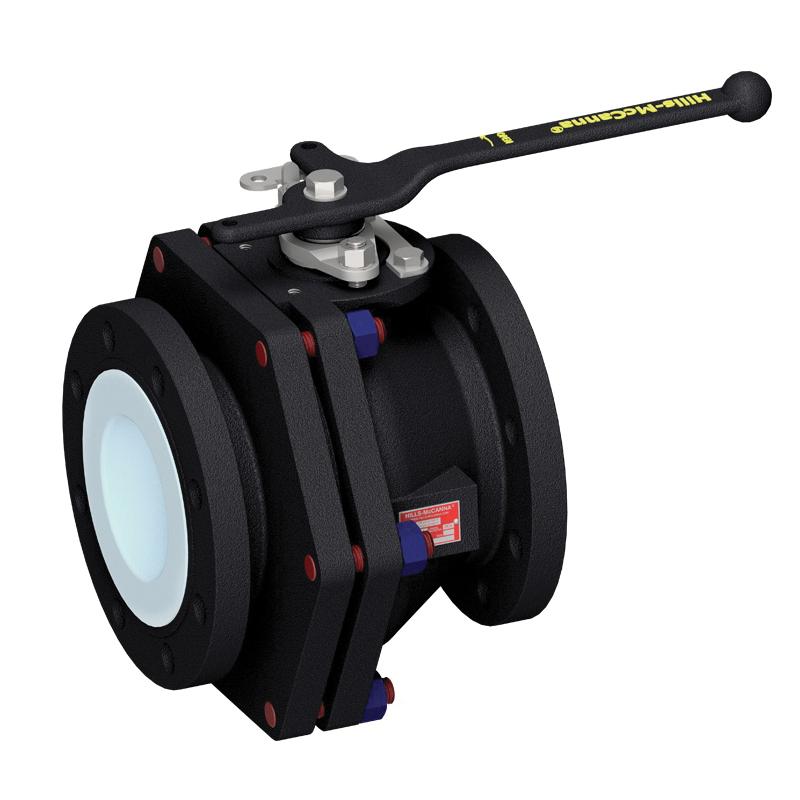

1 150# FLGD CHEMTITE FULL PORT BALL VALVE - PFA LINED - A395 DI BODY - LOCKING LEVER HANDLE #BO-01-A-02-O

Ductile Iron Ball Valves
603910 MFG #: 603910
Requires Quote

1 150# FLGD CHEMTITE FULL PORT BALL VALVE - PFA LINED - A395 DI BODY - LOCKING LEVER HANDLE #BO-01-A-02-O
  • Additional Information: 85 in-lb Torque
  • Ball Material: Stainless Steel
  • Body Material: Ductile Iron
  • Connection Type: Flanged
  • Flow Coefficient (Cv): 55
  • Handle Material: Ductile Iron
  • Manufacturer: Hills-McCanna®
  • Material Standard: ASTM A395, ASTM A995
  • Mounting Type: Pad
  • Nominal Size: 1
  • Operator Type: Locking Wrench
  • Packing Material: PTFE
  • Port Type: Full
  • Pressure Class: 150
  • Seat Material: PTFE
  • Temperature Rating: -20 to 400
  • Trim Material: 18-8 Stainless Steel

1 150# FLGD CHEMTITE FULL PORT BALL VALVE - PFA LINED - A395 DI BODY - LOCKING LEVER HANDLE #BO-01-A-02-O

QTY
Add to Wishlist
  • Features
  • Bubble-tight design
  • Heavy-duty PFA liner resists cracking
  • Dovetail locking grooves for PFA retention
  • Anti-blowout stem
  • ASME B16.10 with ISO 5211 mounting pad
  • Static ground spring
  • STANDARD_APPROVALS: ASME B16.10|CRN Certified|PED Certified
