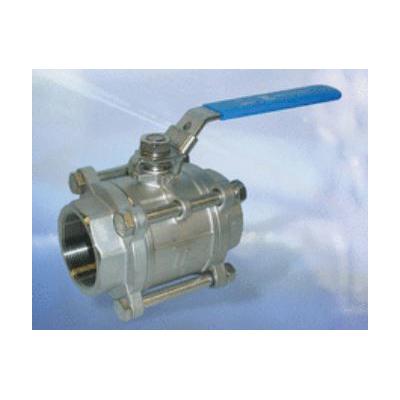

1-1/4 TRUELINE N650T-SW 1000PSI FP BALL VLV SW 316 BODY/TRIM RTFE/PTFE SEATS & PACKING LOCKING LEVER

Stainless Steel Ball Valves
763399 MFG #: N650T-SW-1-1/4
Requires Quote

1-1/4 TRUELINE N650T-SW 1000PSI FP BALL VLV SW 316 BODY/TRIM RTFE/PTFE SEATS & PACKING LOCKING LEVER
  • Actuator Type: Manual
  • Ball Material: 316 Stainless Steel
  • Body Material: 316 Stainless Steel
  • Connection Type: Socket Weld
  • Handle Material: 316 Stainless Steel
  • Inlet to Outlet Length: 4.05
  • Manufacturer: Trueline®
  • Material Standard: ASTM A351 Grade CF8M
  • Nominal Size: 1-1/4
  • Opening Size: 1.26
  • Operator Type: Locking
  • Packing Material: PTFE
  • Port Type: Full
  • Seat Material: PTFE
  • Series: N650T Series
  • Softgoods Material: PTFE
  • Stem Material: 316 Stainless Steel
  • Temperature Rating: -4 to 356
  • Top to Inlet Center: 3.16
  • Trim Material: PTFE

1-1/4 TRUELINE N650T-SW 1000PSI FP BALL VLV SW 316 BODY/TRIM RTFE/PTFE SEATS & PACKING LOCKING LEVER

QTY
Add to Wishlist
  • Features
  • Padlockable device
  • ISO 5211 direct-mount pad
  • Blowout-proof stem design
  • STANDARD_APPROVALS: ANSI Specified|API 598|ASME Specified
  • APPLICATION: Chemical and Industrial Applications
