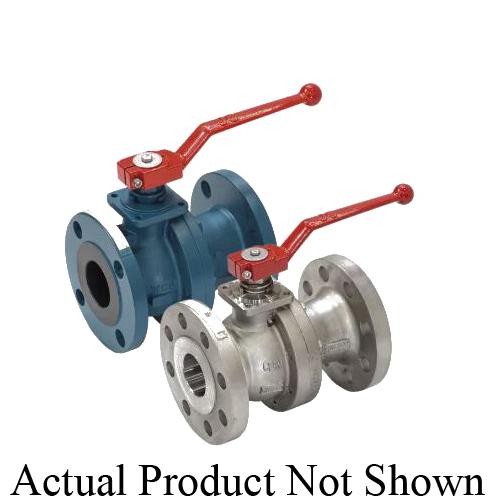

1 150# JC-TL TRUELINE #515IIT-LD SS/316 SS - 316SST BODY - 316SST TRIM - FULL PORT BALL VALVE - PTFE SEATS - RF FLGD - GRAPHITE PACKING - FIRE SAFE - LOCKING LEVER

Stainless Steel Ball Valves
600365 MFG #: 515IIT-LD-1
Requires Quote

1 150# JC-TL TRUELINE #515IIT-LD SS/316 SS - 316SST BODY - 316SST TRIM - FULL PORT BALL VALVE - PTFE SEATS - RF FLGD - GRAPHITE PACKING - FIRE SAFE - LOCKING LEVER
  • Ball Material: 316 Stainless Steel
  • Body Material: 316 Stainless Steel
  • Connection Type: Flanged
  • Inlet to Outlet Length: 127
  • Manufacturer: JC Valves
  • Material Standard: ASTM A351 Grade CF8M, A479
  • Nominal Size: 1
  • Opening Size: 25
  • Operator Type: Locking
  • Packing Material: Graphite
  • Port Type: Full
  • Pressure Class: 150
  • Seal Material: PTFE
  • Series: 515 Series
  • Softgoods Material: FKM/Graphite/PTFE
  • Stem Material: 316 Stainless Steel
  • Top to Inlet Center: 130
  • Trim Material: 316 Stainless Steel

1 150# JC-TL TRUELINE #515IIT-LD SS/316 SS - 316SST BODY - 316SST TRIM - FULL PORT BALL VALVE - PTFE SEATS - RF FLGD - GRAPHITE PACKING - FIRE SAFE - LOCKING LEVER

QTY
Add to Wishlist
  • Features
  • Blowout-proof stem design
  • Non-removable anti-static devices
  • Cavity pressure balancing hole
  • Live loaded packing
  • STANDARD_APPROVALS: AGA 8328 G|API 6D/6FA/607|AS 4617 2004|ASME VIII Div 1/B16.1/B16.34|ATEX 2014/34/EU|CE 2014/68/EV|CSA 3.16|EAC Certified|FDA Approved|IEC 61508|NACE MR0103/MR0175|SIL Level 3 IEC 61508|TA-LUFT Certified|TRCU 10/12/32|USP Class VI
  • APPLICATION: Oil and Gas, Chemical and Petrochemical, Pulp and Paper, Energy and Renewable, Food and Pharma, Marine, Tank Terminals, Mining, Waste Treatment and Special Fluids Transport Industries Applications
