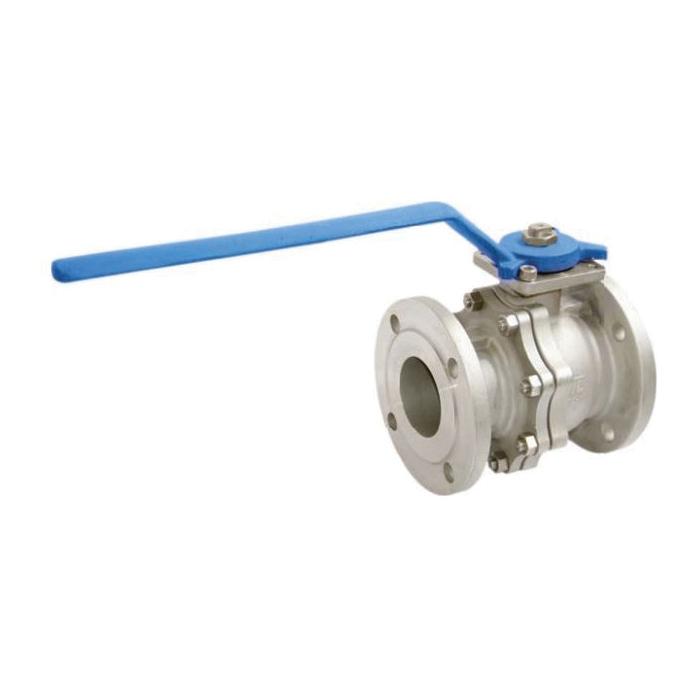

1 150# TRUELINE FLGD BV - #415IITFM FLGD BALL VALVE - CF8M BALL/STEM - TFM-1600 SEAT - LOCKING LEVER

Stainless Steel Ball Valves
569364 MFG #: 415IITFM-1
594.00000 / ea

1 150# TRUELINE FLGD BV - #415IITFM FLGD BALL VALVE - CF8M BALL/STEM - TFM-1600 SEAT - LOCKING LEVER
  • Actuator Type: Manual
  • Additional Information: 4.3 in Dia Flange, 9 ft-lb Torque
  • Ball Material: 316 Stainless Steel
  • Body Material: 316 Stainless Steel
  • Connection Type: Flanged
  • Flow Coefficient (Cv): 87
  • Inlet to Outlet Length: 5
  • Manufacturer: Trueline®
  • Material Standard: ASTM A351 Grade CF8M, ASTM A479
  • Nominal Size: 1
  • Opening Size: 1
  • Operator Type: Locking Lever
  • Packing Material: Graphite
  • Port Type: Full
  • Pressure Class: 150
  • Seal Material: PTFE
  • Seat Material: TFM1600
  • Series: 415 Series
  • Softgoods Material: FKM/PTFE
  • Stem Material: 316 Stainless Steel
  • Top to Inlet Center: 3.4

1 150# TRUELINE FLGD BV - #415IITFM FLGD BALL VALVE - CF8M BALL/STEM - TFM-1600 SEAT - LOCKING LEVER

QTY
Add to Wishlist
  • Features
  • Ball valves are Fire Safe tested and certified according to ISO 10497:2004-API 607 5th edition
  • Ball valves have been fugitive emissions type tested to ISO 15848-1
  • Anti-static devices are built-in the valve stem to ensure electrical continuity between ball, stem and body
  • The possibility of ignition of the fluid flowing across the valve is avoided
  • Our ball valves also meet ATEX Directive 94/9/EC Group II Category 2 and are suitable to be installed in zones 1, 2, 21 and 22 (ATEX marking Ex II 2 GD c)
  • STANDARD_APPROVALS: ASME B16.5|ATEX Directive 94/9/EC Group II Category 2|EN 10204-3.1|NACE MR0175
