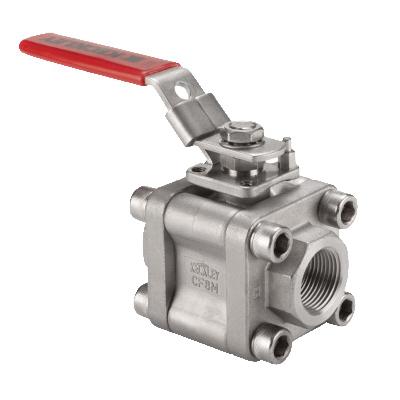

1 KECKLEY BVM3SWFSSRGSL-100 800# 3PCS SS BODY/BALL R-PTFE SEAT B16.34 API 608 API 607 FIRE-SAFE NACE

Stainless Steel Ball Valves
763408 MFG #: BVM3SWFSSRGSL-100
Requires Quote

1 KECKLEY BVM3SWFSSRGSL-100 800# 3PCS SS BODY/BALL R-PTFE SEAT B16.34 API 608 API 607 FIRE-SAFE NACE
  • Ball Material: Stainless Steel
  • Body Material: Stainless Steel
  • Connection Type: Socket Weld
  • Flow Coefficient (Cv): 62
  • Handle Material: Stainless Steel
  • Inlet to Outlet Length: 7-1/2
  • Manufacturer: Keckley
  • Material Standard: ASTM A351 Grade CF8M
  • Media: Gas, Oil, Water
  • Nominal Size: 1
  • Opening Size: 0.81
  • Operator Type: Latch-Lock Lever
  • Packing Material: Graphite
  • Port Type: Full
  • Pressure Class: 800
  • Seal Material: Graphite
  • Seat Material: RPTFE
  • Series: BVM3 Series
  • Stem Material: Stainless Steel
  • Temperature Rating: 100
  • Top to Inlet Center: 3

1 KECKLEY BVM3SWFSSRGSL-100 800# 3PCS SS BODY/BALL R-PTFE SEAT B16.34 API 608 API 607 FIRE-SAFE NACE

QTY
Add to Wishlist
  • Features
  • Extended packing adjustment nut for ease of adjustment
  • ISO 5211 actuator mounting pads on all sizes
  • Electrically grounded stem
  • Standard locking stainless steel handles
  • STANDARD_APPROVALS: API 598/607/608|ASME B16.34|NACE MR0175
  • APPLICATION: Industrial and Oil/gas Piping Applications
