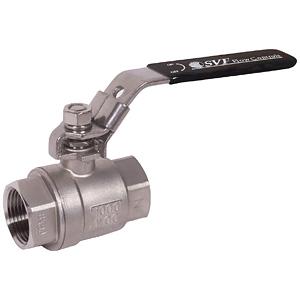

1 MATCO #20SSTH05M 2PC 316SS FP THRD BALL VALVE W/ LOCKING HANDLE

Stainless Steel Ball Valves
710811 MFG #: 20SSTH05M
Requires Quote

1 MATCO #20SSTH05M 2PC 316SS FP THRD BALL VALVE W/ LOCKING HANDLE
  • Actuator Type: Manual
  • Additional Information: 12.4 N-m Torque
  • Ball Material: Stainless Steel
  • Body Material: Stainless Steel
  • Connection Type: Threaded
  • Flow Coefficient (Cv): 35
  • Handle Material: Stainless Steel
  • Inlet to Outlet Length: 3.03
  • Manufacturer: SVF Flow Controls
  • Material Standard: ASTM A351, A276
  • Media: Gas, Oil, Water
  • Nominal Size: 1
  • Operator Type: Locking
  • Packing Material: RPTFE
  • Port Type: Full
  • Pressure Class: 150
  • Seat Material: RPTFE
  • Series: 20SS Series
  • Softgoods Material: RPTFE
  • Stem Material: Stainless Steel
  • Temperature Rating: -4 to 392
  • Top to Inlet Center: 2.84
  • Trim Material: Stainless Steel

1 MATCO #20SSTH05M 2PC 316SS FP THRD BALL VALVE W/ LOCKING HANDLE

QTY
Add to Wishlist
  • Features
  • Investment casting
  • Blowout-proof stem design
  • STANDARD_APPROVALS: ASME B1.20.1
