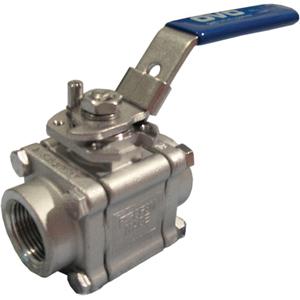

1 OVC 2366FT 2000# 3PC SS THRD BALL VALVE

Stainless Steel Ball Valves
292640 MFG #: 2366FT-1
Requires Quote

1 OVC 2366FT 2000# 3PC SS THRD BALL VALVE
  • Additional Information: 7/16-20 UNF Thread, 91 in-lb Torque
  • Ball Material: 316 Stainless Steel
  • Body Material: 316 Stainless Steel
  • Connection Type: NPT
  • Handle Material: 304 Stainless Steel
  • Inlet to Outlet Length: 3.66
  • Manufacturer: OVC
  • Material Standard: ASTM A351 Grade CF8M, ASTM A276-316, ANSI 304
  • Media: Alcohol, Chemical, Clean Solution, Gas, Solvent, Steam, Water
  • Nominal Size: 1
  • Opening Size: 0.94
  • Operator Type: Latch-Lock
  • Packing Material: Graphite
  • Port Type: Full
  • Seal Material: Graphite
  • Seat Material: RTFE
  • Series: 2366FT Series
  • Softgoods Material: CTFE
  • Stem Material: 316 Stainless Steel
  • Temperature Rating: -40 to 392
  • Top to Inlet Center: 3.21
  • Trim Material: 316 Stainless Steel

1 OVC 2366FT 2000# 3PC SS THRD BALL VALVE

QTY
Add to Wishlist
  • Features
  • Investment casting
  • Blowout-proof stem design
  • 15% glass fiberfill PTFE reinforced seat
  • Mounting pad refers to ISO 5211 and DIN 3337
  • STANDARD_APPROVALS: API 607|API 598|ASME B1.20.1|DIN 2999/3337/BS21|NACE MRO175
