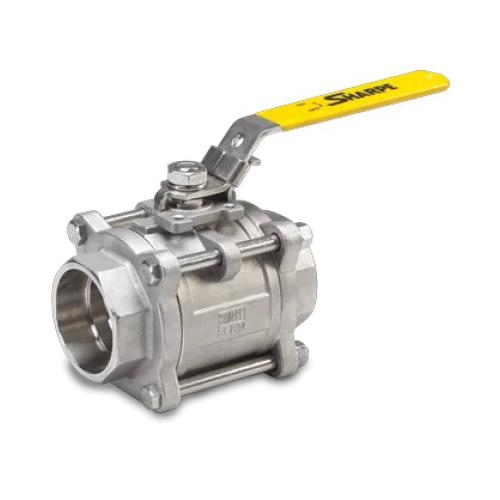

1 SHARPE 53036-SW 1000# SS 3PC SW FP BALL VALVE

Stainless Steel Ball Valves
75084 MFG #: SV53036SW010
Requires Quote

1 SHARPE 53036-SW 1000# SS 3PC SW FP BALL VALVE
  • Ball Material: Stainless Steel
  • Body Material: Stainless Steel
  • Connection Type: Socket Weld
  • Flow Coefficient (Cv): 70
  • Handle Material: Stainless Steel
  • Inlet to Outlet Length: 3.62
  • Manufacturer: Sharpe®
  • Material Standard: ASTM A351 Grade CF8M
  • Nominal Size: 1
  • Opening Size: 1.33
  • Operator Type: Locking Lever
  • Packing Material: PTFE
  • Port Type: Full
  • Seal Material: PTFE
  • Seat Material: RTFE
  • Series: Series 5303
  • Stem Material: Stainless Steel
  • Top to Inlet Center: 2.81

1 SHARPE 53036-SW 1000# SS 3PC SW FP BALL VALVE

QTY
Add to Wishlist
  • Features
  • Bi-directional, bubble-tight shut-off
  • Blowout-proof stem design
  • Actuator mounting pad
  • Lockable handle as standard
  • STANDARD_APPROVALS: ASME B16.11|MSS SP-110
