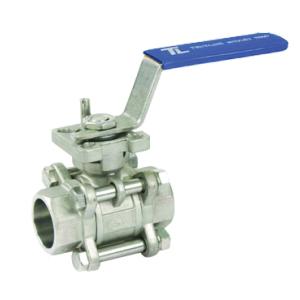

1 TRUELINE N658 BALL VALVE 316 SS - 3 PC SOCKET WELD - FULL PORT - 1000 WOG - RTFE SEATS - PTFE PACKING - DIRECT MOUNT - LL LEVER

Stainless Steel Ball Valves
697773 MFG #: N658-SW-1
Requires Quote

1 TRUELINE N658 BALL VALVE 316 SS - 3 PC SOCKET WELD - FULL PORT - 1000 WOG - RTFE SEATS - PTFE PACKING - DIRECT MOUNT - LL LEVER
  • Actuator Type: Manual
  • Additional Information: 10 ft-lb Torque
  • Ball Material: 316 Stainless Steel
  • Body Material: 316 Stainless Steel
  • Connection Type: Socket Weld
  • Flow Coefficient (Cv): 110
  • Handle Material: 304 Stainless Steel
  • Inlet to Outlet Length: 3.19
  • Manufacturer: Trueline®
  • Material Standard: ASTM A351 Grade CF8M
  • Nominal Size: 1
  • Opening Size: 0.98
  • Operator Type: Handle
  • Packing Material: PTFE
  • Port Type: Full
  • Seat Material: RTFE
  • Series: N658 Series
  • Softgoods Material: FKM/PTFE
  • Stem Material: 316 Stainless Steel
  • Temperature Rating: -20 to 180
  • Top to Inlet Center: 3.56
  • Trim Material: 316 Stainless Steel

1 TRUELINE N658 BALL VALVE 316 SS - 3 PC SOCKET WELD - FULL PORT - 1000 WOG - RTFE SEATS - PTFE PACKING - DIRECT MOUNT - LL LEVER

QTY
Add to Wishlist
  • Features
  • Investment cast component
  • ISO 5211 direct-mount pad
  • Blowout-proof stem design
  • Live loaded packing
  • Locking nut washer
  • STANDARD_APPROVALS: EN 12266|EN 12516-1/2/3|EN 1503-1
  • APPLICATION: General Chemical and Industrial Applications
