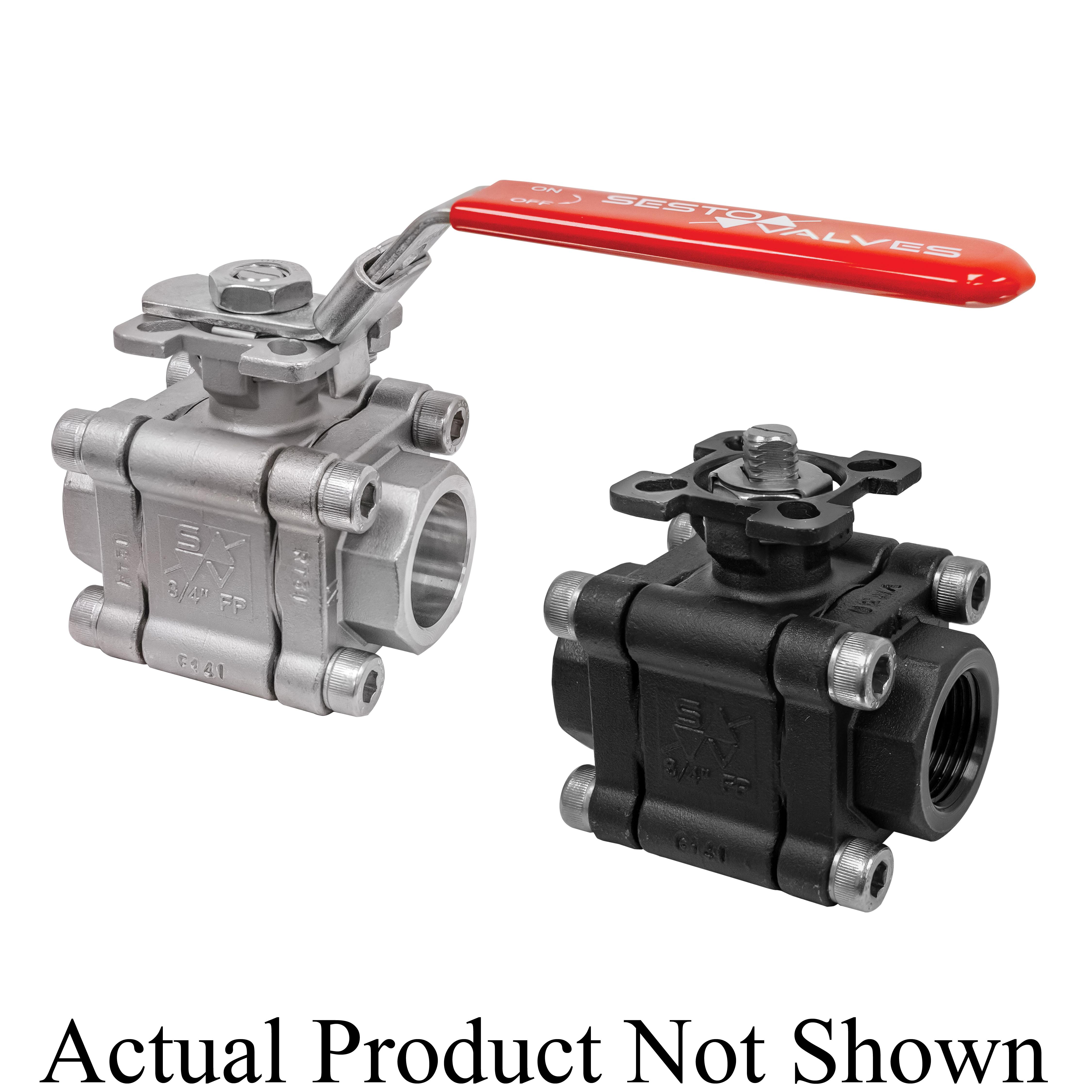

1" SESTO MODEL M32S-01-S60F-L M32 SERIES, FLOATING 3-PC CLASS 800/2000 WOG BALL VALVE, FULL PORT, SW X SW SOCKETWELD ENDS STAINLESS STEEL ASTM A351 CF8M BODY & BALL, STAINLESS STEEL ASTM A276-316 STEM, TFM 1600 SEATS, VITON O-RING, GRAPHITE FIRESAFE PACKING, AISI 304SS BOLTS, API607 ISO5211 DIRECT MOUNT FOR AUTOMATION W/ LOCKING LEVER HANDLE

Stainless Steel Ball Valves
733018 MFG #: M32S-01-S60F-L
Requires Quote

1" SESTO MODEL M32S-01-S60F-L M32 SERIES, FLOATING 3-PC CLASS 800/2000 WOG BALL VALVE, FULL PORT, SW X SW SOCKETWELD ENDS STAINLESS STEEL ASTM A351 CF8M BODY & BALL, STAINLESS STEEL ASTM A276-316 STEM, TFM 1600 SEATS, VITON O-RING, GRAPHITE FIRESAFE PACKING, AISI 304SS BOLTS, API607 ISO5211 DIRECT MOUNT FOR AUTOMATION W/ LOCKING LEVER HANDLE
  • Actuator Type: Manual
  • Additional Information: 93 in-lb Torque
  • Ball Material: Stainless Steel
  • Body Material: Stainless Steel
  • Connection Type: Socket Weld
  • Flow Coefficient (Cv): 68
  • Inlet to Outlet Length: 3.54
  • Manufacturer: Sesto Valves
  • Material Standard: ASTM A351, A276
  • Media: Gas, Oil, Steam, Water
  • Mounting Type: Pad
  • Nominal Size: 1
  • Opening Size: 1
  • Operator Type: Locking Lever
  • Packing Material: Graphite
  • Port Type: Full
  • Pressure Class: 800
  • Seal Material: Graphite/RTFE
  • Seat Material: TFM
  • Series: M32 Series
  • Softgoods Material: FKM/PTFE
  • Stem Material: Stainless Steel
  • Trim Material: Stainless Steel

1" SESTO MODEL M32S-01-S60F-L M32 SERIES, FLOATING 3-PC CLASS 800/2000 WOG BALL VALVE, FULL PORT, SW X SW SOCKETWELD ENDS STAINLESS STEEL ASTM A351 CF8M BODY & BALL, STAINLESS STEEL ASTM A276-316 STEM, TFM 1600 SEATS, VITON O-RING, GRAPHITE FIRESAFE PACKING, AISI 304SS BOLTS, API607 ISO5211 DIRECT MOUNT FOR AUTOMATION W/ LOCKING LEVER HANDLE

QTY
Add to Wishlist
  • Features
  • Anti-static device and live loaded packing
  • Bubble-tight shut-off
  • Center body swing out design
  • Blowout-proof, low torque guided stem design
  • STANDARD_APPROVALS: API 6D/598/607/608|ASME B16.34/B16.5/ B16.10|CE Ex|Globally Certified|MSS-SP-25|NACE MR0175|PED Standard|SIL2 Standard
