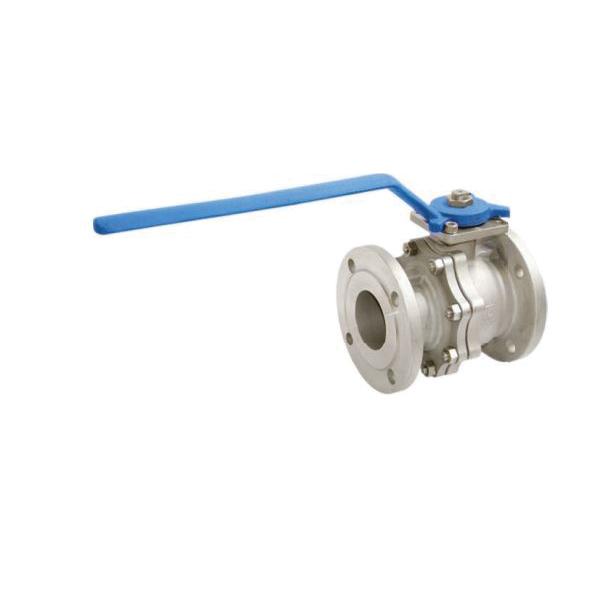

1-1/2" TRUELINE 415IIT 150# FP 316 S/S BALL VALVE, TFM1600 SEATS C/W VALBIA SR85-S4 SPRING RETURN ACTUATOR *** FAIL CLOSED *** MAX-AIR #MS45-120M03 LIMIT SWITCH (2 SPDT MECH), ALUMINUM HOUSING, NEMA 4, 4X, CSA/UL BONOMI NMR1-C2 24 VDC NAMUR MOUNT SOLENOID VLV DIRECT MOUNT PACKAGE ASSEMBLED, TESTED & TAGGED

Stainless Steel Ball Valves
751912 MFG #: 415IIT-1/2
Requires Quote

1-1/2" TRUELINE 415IIT 150# FP 316 S/S BALL VALVE, TFM1600 SEATS C/W VALBIA SR85-S4 SPRING RETURN ACTUATOR *** FAIL CLOSED *** MAX-AIR #MS45-120M03 LIMIT SWITCH (2 SPDT MECH), ALUMINUM HOUSING, NEMA 4, 4X, CSA/UL BONOMI NMR1-C2 24 VDC NAMUR MOUNT SOLENOID VLV DIRECT MOUNT PACKAGE ASSEMBLED, TESTED & TAGGED
  • Additional Information: IIT Construction
  • Ball Material: Stainless Steel
  • Body Material: Stainless Steel
  • Connection Type: Flanged
  • Inlet to Outlet Length: 6-1/2
  • Manufacturer: Trueline®
  • Material Standard: ASTM A351, A479
  • Nominal Size: 1-1/2
  • Operator Type: Lever
  • Packing Material: Graphite
  • Pressure Class: 150
  • Series: 415 Series
  • Softgoods Material: Graphite/FKM
  • Stem Material: Stainless Steel
  • Top to Inlet Center: 4.8
  • Trim Material: Stainless Steel

1-1/2" TRUELINE 415IIT 150# FP 316 S/S BALL VALVE, TFM1600 SEATS C/W VALBIA SR85-S4 SPRING RETURN ACTUATOR *** FAIL CLOSED *** MAX-AIR #MS45-120M03 LIMIT SWITCH (2 SPDT MECH), ALUMINUM HOUSING, NEMA 4, 4X, CSA/UL BONOMI NMR1-C2 24 VDC NAMUR MOUNT SOLENOID VLV DIRECT MOUNT PACKAGE ASSEMBLED, TESTED & TAGGED

QTY
Add to Wishlist
  • Features
  • Ball valves are Fire Safe tested and certified according to ISO 10497:2004-API 607 5th edition
  • Ball valves have been fugitive emissions type tested to ISO 15848-1
  • Anti-static devices are built-in the valve stem to ensure electrical continuity between ball, stem and body
  • The possibility of ignition of the fluid flowing across the valve is avoided
  • STANDARD_APPROVALS: ASME B16.5|ATEX 94/9/EC Group II Category 2|EN 10204-3.1|NACE MR0175
