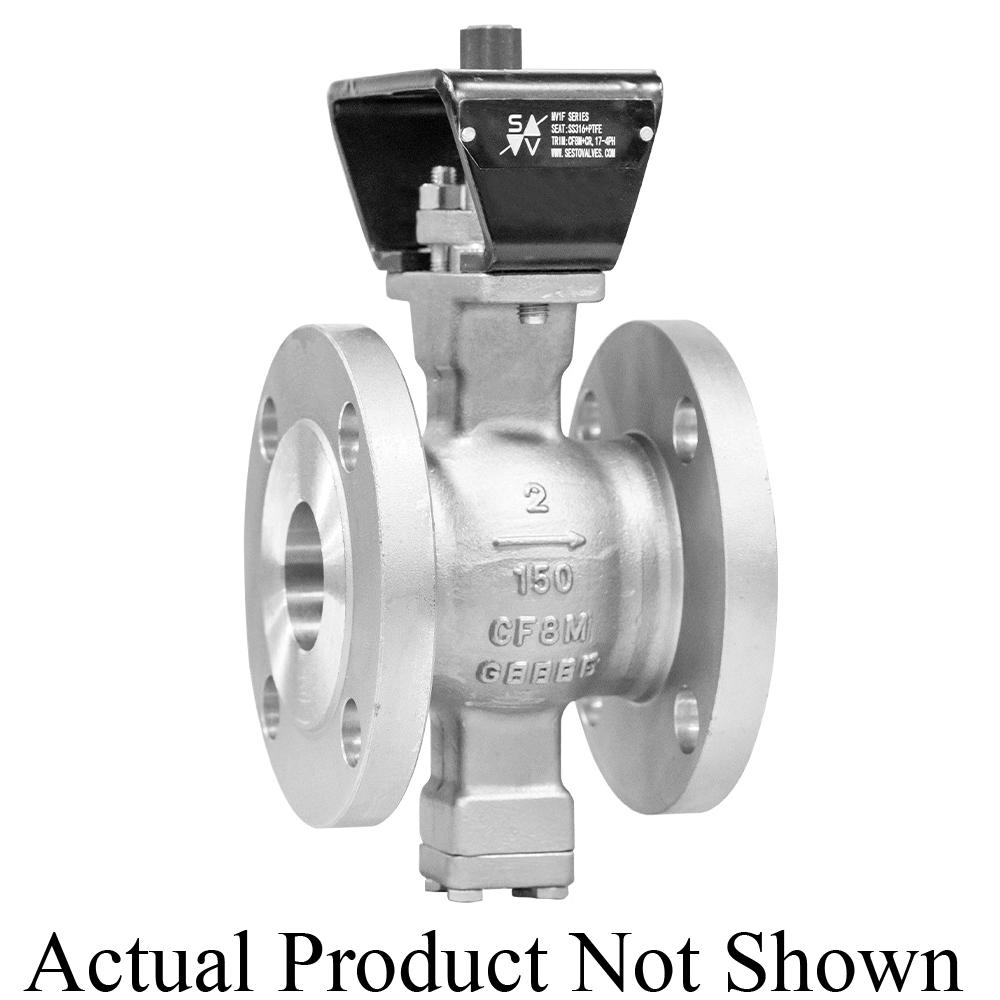

1-1/2" SESTO MV1F (CF8M + PTFE SEAT) SEGMENTED 100 DEGREE V-NOTCH BALL VALVE, CLASS 150 RF FLANGED, CF8M BODY, CF8M + HARD CHROME BALL, 17-4 PH STEM, PTFE SEATS, ISO MOUNTING, (#MV1F-1M-S7VT-N) C/W V-TORK VT125S10A PNEUMATIC SPRING RETURN ACTUATOR * *FAIL CLOSED** MAX AIR PET01 ELECTRO-PNEUMATIC POSITIONER, 4-20mA, WITH GAUGES AND MOUNTING BRACKET, NON-EXPLOSION PROOF, 1/2" CONDUIT ENTRY, 1/4" NPT AIR CONNECTIONS, NAMUR INTERFACE, STANDARD TEMPERATURE -30�C TO +85�C, NO FEEDBACK MAX-AIR MA-63252-NKG HEAVY DUTY AIR FILTER REGULATOR, 1/4 NPT, HIGH FLOW, W/ GAUGE, 0-120 PSI SET PRESSURE ASSEMBLED, TESTED & TAGGED

Stainless Steel Ball Valves
766717 MFG #: MV1F-1M-S-7-V-100-T-N
Requires Quote

1-1/2" SESTO MV1F (CF8M + PTFE SEAT) SEGMENTED 100 DEGREE V-NOTCH BALL VALVE, CLASS 150 RF FLANGED, CF8M BODY, CF8M + HARD CHROME BALL, 17-4 PH STEM, PTFE SEATS, ISO MOUNTING, (#MV1F-1M-S7VT-N) C/W V-TORK VT125S10A PNEUMATIC SPRING RETURN ACTUATOR * *FAIL CLOSED** MAX AIR PET01 ELECTRO-PNEUMATIC POSITIONER, 4-20mA, WITH GAUGES AND MOUNTING BRACKET, NON-EXPLOSION PROOF, 1/2" CONDUIT ENTRY, 1/4" NPT AIR CONNECTIONS, NAMUR INTERFACE, STANDARD TEMPERATURE -30�C TO +85�C, NO FEEDBACK MAX-AIR MA-63252-NKG HEAVY DUTY AIR FILTER REGULATOR, 1/4 NPT, HIGH FLOW, W/ GAUGE, 0-120 PSI SET PRESSURE ASSEMBLED, TESTED & TAGGED
  • Additional Information: 602 in-lb Torque, V-Notch Ball
  • Ball Material: Stainless Steel
  • Body Material: Stainless Steel
  • Connection Type: Flanged
  • Flow Coefficient (Cv): 69
  • Inlet to Outlet Length: 4.49
  • Manufacturer: Sesto Valves
  • Material Standard: ASTM A193, A194, A351
  • Mounting Type: Pad
  • Nominal Size: 1-1/2
  • Operator Type: Bare
  • Packing Material: PTFE
  • Pressure Class: 150
  • Series: MV1F Series
  • Softgoods Material: FKM/PTFE
  • Stem Material: Stainless Steel
  • Trim Material: Stainless Steel

1-1/2" SESTO MV1F (CF8M + PTFE SEAT) SEGMENTED 100 DEGREE V-NOTCH BALL VALVE, CLASS 150 RF FLANGED, CF8M BODY, CF8M + HARD CHROME BALL, 17-4 PH STEM, PTFE SEATS, ISO MOUNTING, (#MV1F-1M-S7VT-N) C/W V-TORK VT125S10A PNEUMATIC SPRING RETURN ACTUATOR * *FAIL CLOSED** MAX AIR PET01 ELECTRO-PNEUMATIC POSITIONER, 4-20mA, WITH GAUGES AND MOUNTING BRACKET, NON-EXPLOSION PROOF, 1/2" CONDUIT ENTRY, 1/4" NPT AIR CONNECTIONS, NAMUR INTERFACE, STANDARD TEMPERATURE -30�C TO +85�C, NO FEEDBACK MAX-AIR MA-63252-NKG HEAVY DUTY AIR FILTER REGULATOR, 1/4 NPT, HIGH FLOW, W/ GAUGE, 0-120 PSI SET PRESSURE ASSEMBLED, TESTED & TAGGED

QTY
Add to Wishlist
  • Features
  • Anti-static device and live loaded packing
  • Blowout-proof, low torque guided stem design
  • STANDARD_APPROVALS: API 598|ASME B16.34/B16.5/B16.10|CE Marked|MSS-SP-25|PED Standard
