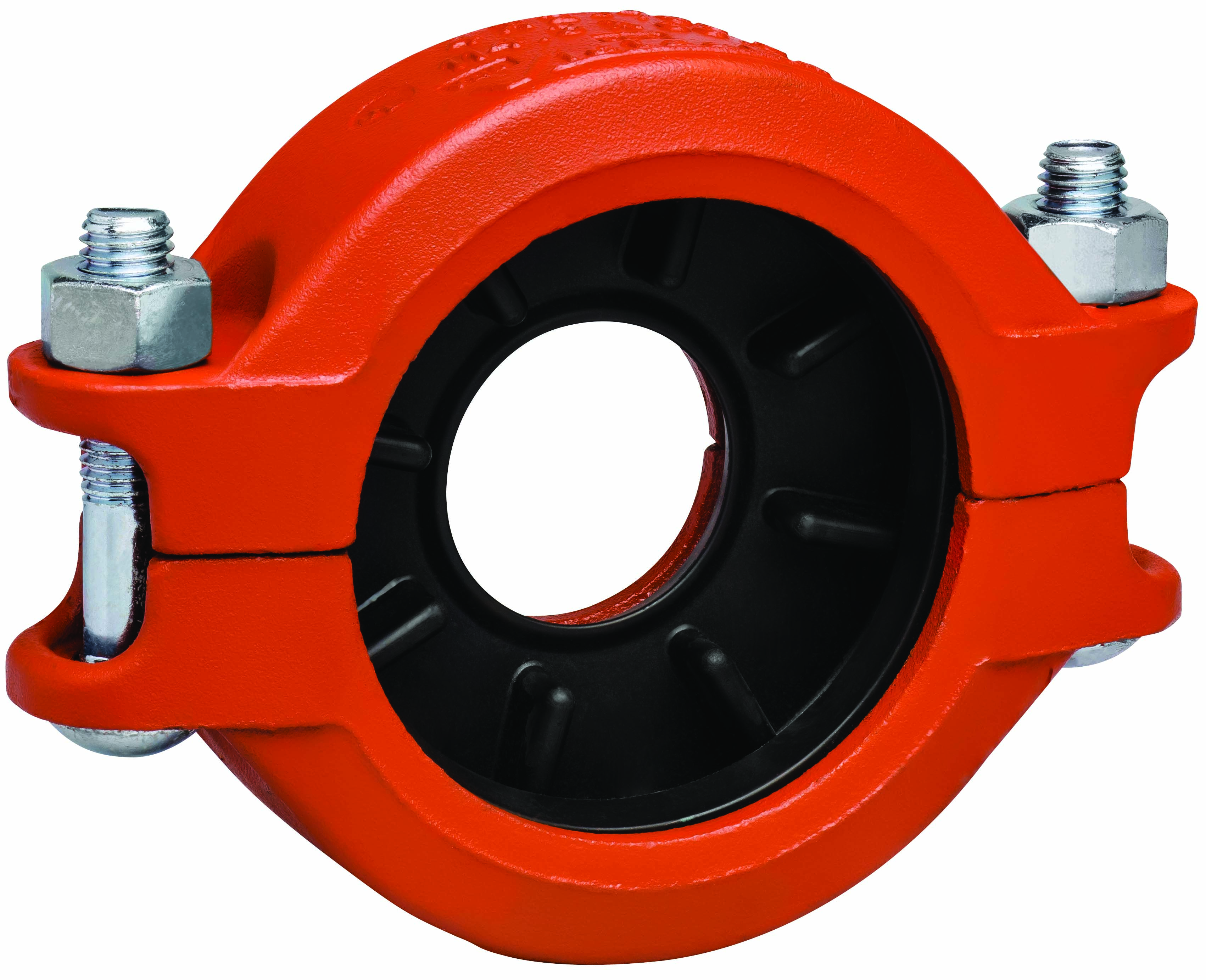

Victaulic® 750 Series LD35750PE0 Reducing Coupling, 4 in Grooved x 2-1/2 in Grooved, Iron, Orange Enamel-Painted
Grooved Pipe Fittings & Clamps
736049
MFG #: LD35750PE0
451.50000
/ ea
Victaulic® Reducing Coupling, 750 Series, Coupling Fitting, 4 in Connection Size 1, Connection Type 1: Grooved, 2-1/2 in Connection Size 2, Connection Type 2: Grooved, Grooved Connection, Iron, Material Construction: Iron, Finish: Orange Enamel-Painted, 350 psi, 4.5 x 2.875 in OD x 8.9 in L x 2.25 in W, -30 to 230 deg F, Additional Information: EPDM Gasket
- Features
- Replaces two couplings and a reducing fitting
- Working pressure dependent on material, wall thickness and size of pipe
- Permits direct reduction on piping run
- STANDARD_APPROVALS: ANSI/NSF 61/372|ASTM A536 Grade 65-45-12|CE EN 10311 CPR (EU) No. 305/2011|cULus Listed|EAC Confirmed|FM Approved|LPCB Certified|UK CA BS EN 10311 CPR (UK) 2019 No. 465|UL Listed|VdS Approved
- APPLICATION: For Victaulic® couplings, valves, accessories and pipe which feature ends formed with the Victaulic® OGS groove profile applications
- INCLUDES: (2) 5/8 x 3-1/4 in Bolts/Nuts
